lubrication of the Chevrolet stovebolt-six 216/235/261 rocker-arm & valve mechanism

1948-52 1953 1954-57 1958 1959-63

rocker-arm assembly lubrication



1948-1952 Chevrolet Truck 216 & 235 Engines

Internal Lubrication of Low-Pressure 216/235 (perhaps all from 216 and 235 from 1941-1952)

tube

lubrication of the rocker-arm & valve mechanism
from the 1948-51 (w/52 supplement) Chevrolet Truck Shop Manual






1953 is an "odd ball" transition year.

The 235 engines changed from 15 head bolts (as in 1952 and earlier 216/235 engines) to 18 head bolts (as in later 235/261 engines).

The information above pertains to 1953 216 engines (cars and trucks, I think);
and,
The information below pertains to both high-pressure and low pressure 1953 235 car/truck engines (I think).

In 1953, the 235 Powerglide-equipped car engine was a high-pressure engine; but,
the 1953 truck engine and the 1953 non-Powerglide car engine were low pressure engines.





1948-52 1953 1954-57 1958 1959-63

rocker-arm assembly lubrication

1954-57 Chevrolet Truck 235 & 261 Engines

Internal Lubrication of High-Pressure 235/261

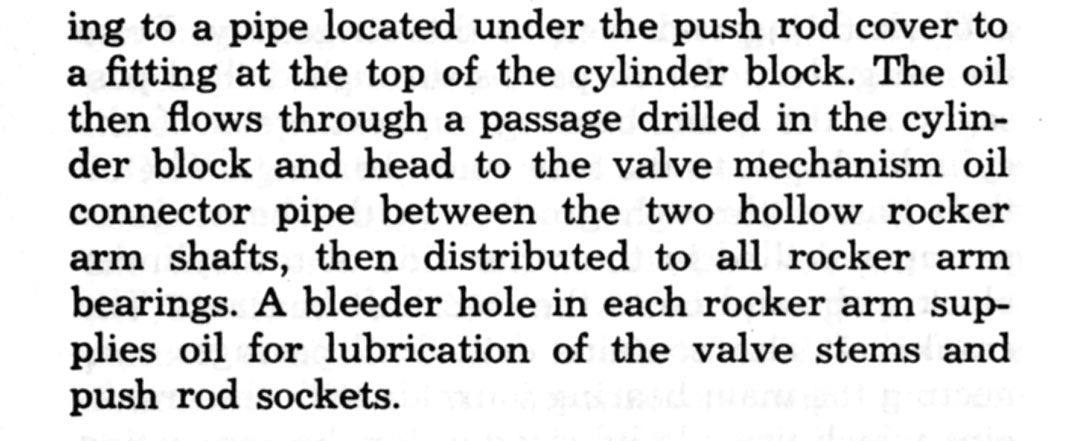

lubrication of the rocker-arm & valve mechanism
from the 1954-57 Chevrolet Truck Shop Manuals




1948-52 1953 1954-57 1958 1959-63

rocker-arm assembly lubrication
