lubrication of the Chevrolet stovebolt-six 216/235/261 rocker-arm & valve mechanism

back to engine lubrication: 1948-52 1953 1954-57 1958 1959-63



1938 (maybe 1937)-1963 Chevrolet Truck Rocker-Arm Assemblies


1937-1952 (from 1938 Car/Truck Shop Manual)

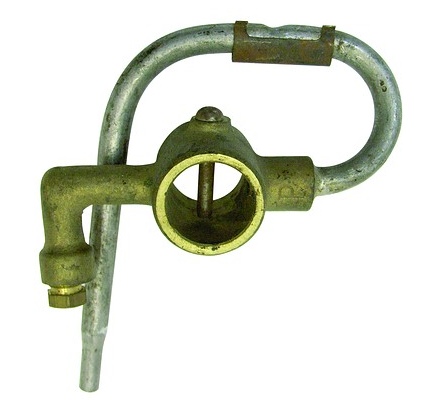

37 assembly216 tube


1954-1957 (from 1954 Truck Shop Manual)

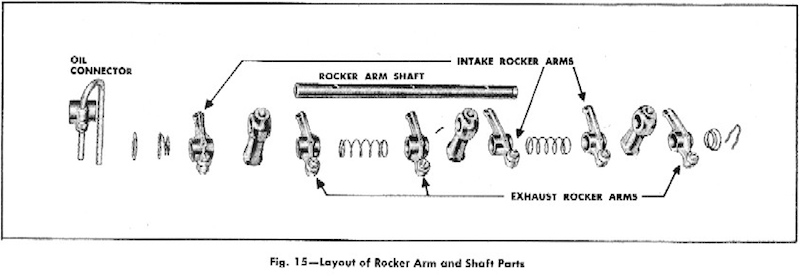

1954 assembly

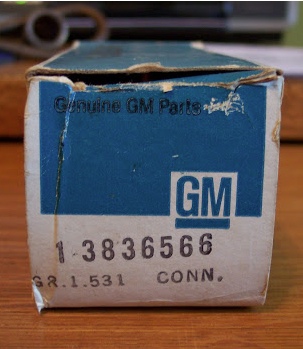

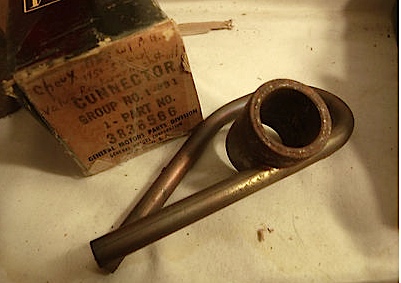

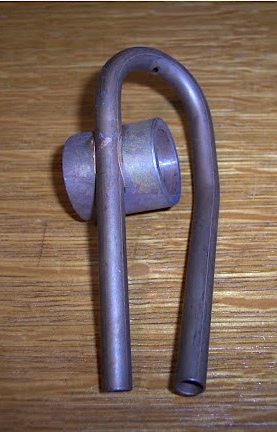

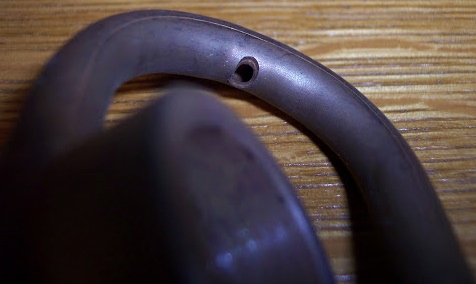

53-57 rear53-57 hole53-57 box53-57 front54-57 tube53-57 tube

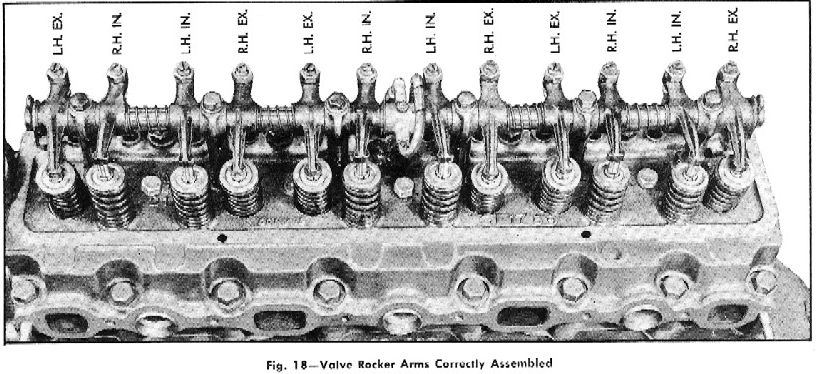

rocker assembly 54


1958

It looks like the rocker arm assembly and oil connector was the same in 1958 as it was in 1957?

1958 assembly
58 rockers


1959-1963 (from 1960 Shop Manual)

1960 rockers

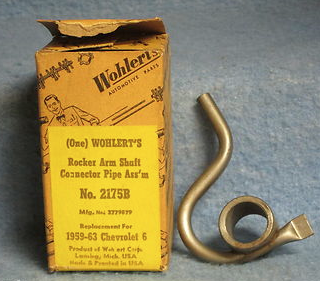

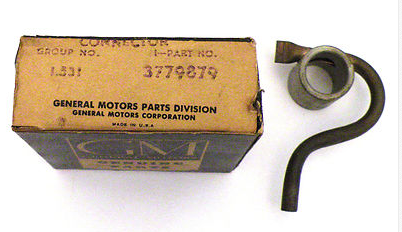

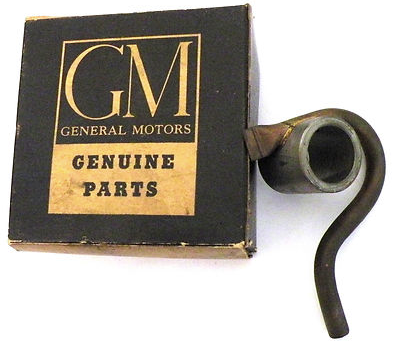

59-63 boxid 59-6359-63 wohlerts
note the tube is sealed on the top and the outlet of the tube in directly under the shaft connect
1960-1
